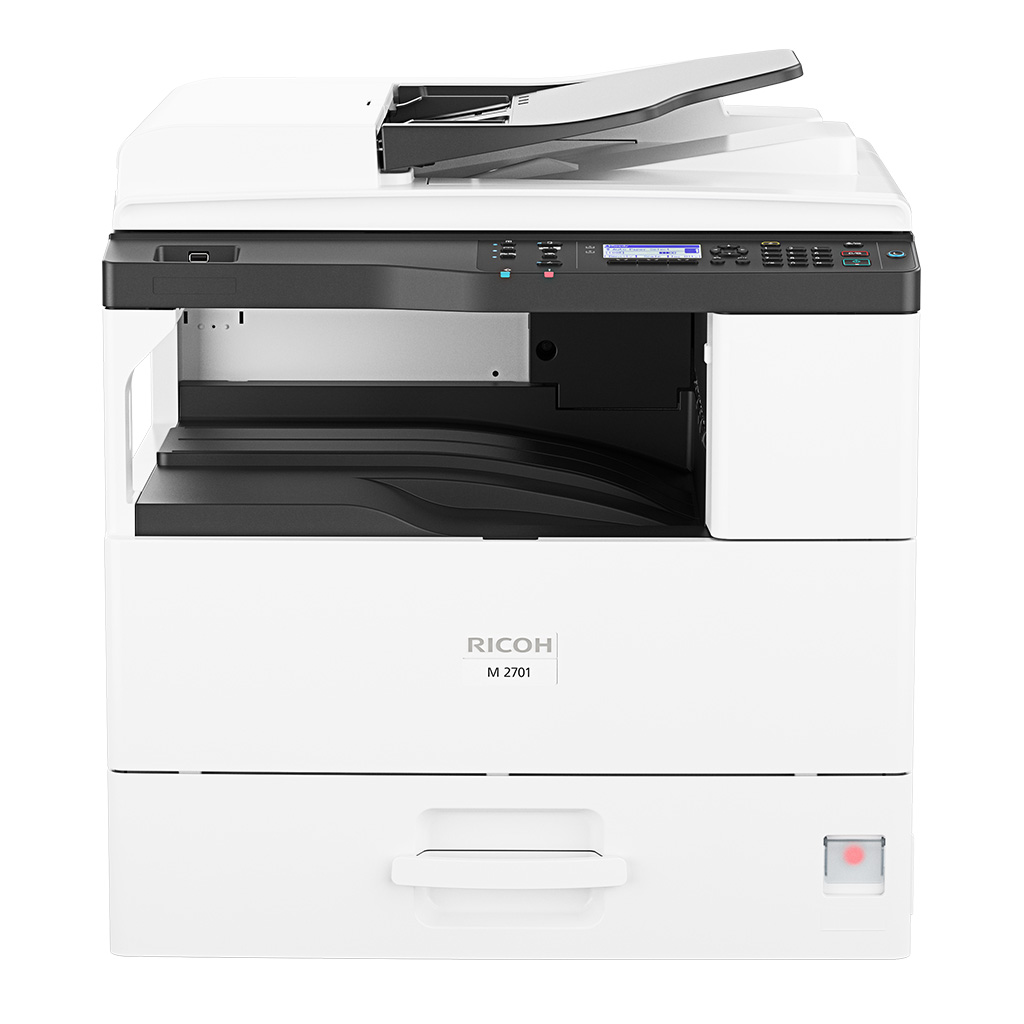

M 2701

M 2701

Bypass Tray Cover Type M16
Protects paper in the bypass tray in dusty environments.
417383 Bypass tray cover Type M16

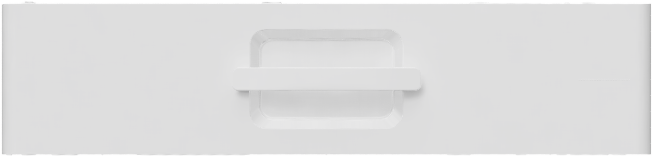

Paper Feed Unit PB2030

Optional 1-tray paper feed unit that increases the paper capacity of the device.

Capacity: 500 sheets
Paper size: B5–A3
Paper weight: 60–105 g/m2
Dimensions (W x D x H): 587 x 556.2 x 140 mm
Weight: 12 kg
Power consumption: 18 W or less

Notes:
Cannot be installed with Paper Feed Unit PB2040
418123 Paper Feed Unit PB2030

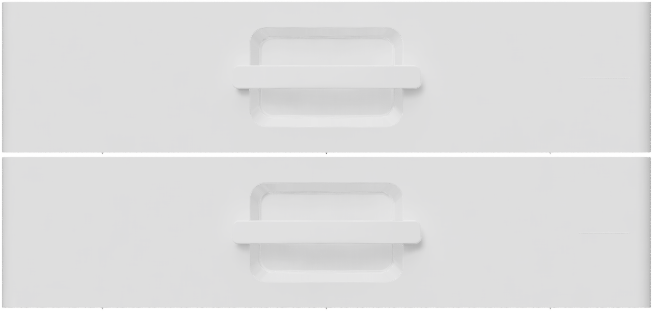

Paper Feed Unit PB2040

Optional 2-tray paper feed unit that increases the paper capacity of the device.

Capacity: 1,000 (2 x 500) sheets
Paper size: B5–A3
Paper weight: 60–105 g/m2
Dimensions (W x D x H): 587 x 556.2 x 340.6 mm
Weight: 30 kg
Power consumption: 36 W or less

Notes:
Cannot be installed with Paper Feed Unit PB2030
418124 Paper Feed Unit PB2040
ADF Handle Type C
Assists seated users or users with arm injuries to open and close an automatic document feeder.
IEEE 802.11 Interface Unit Type P16
Enables WiFi connectivity and wireless printing.

Standard inclusions

  • 50-sheet ARDF
  • 512 MB RAM
  • Mobile printing
  • 500-sheet paper input tray
  • 100-sheet bypass tray
  • Gigabit Ethernet

Current configuration

M 2701
587 mm x581 mm x639 mm (W x D x H)
39 kg
Selected Options:
    M 2701
