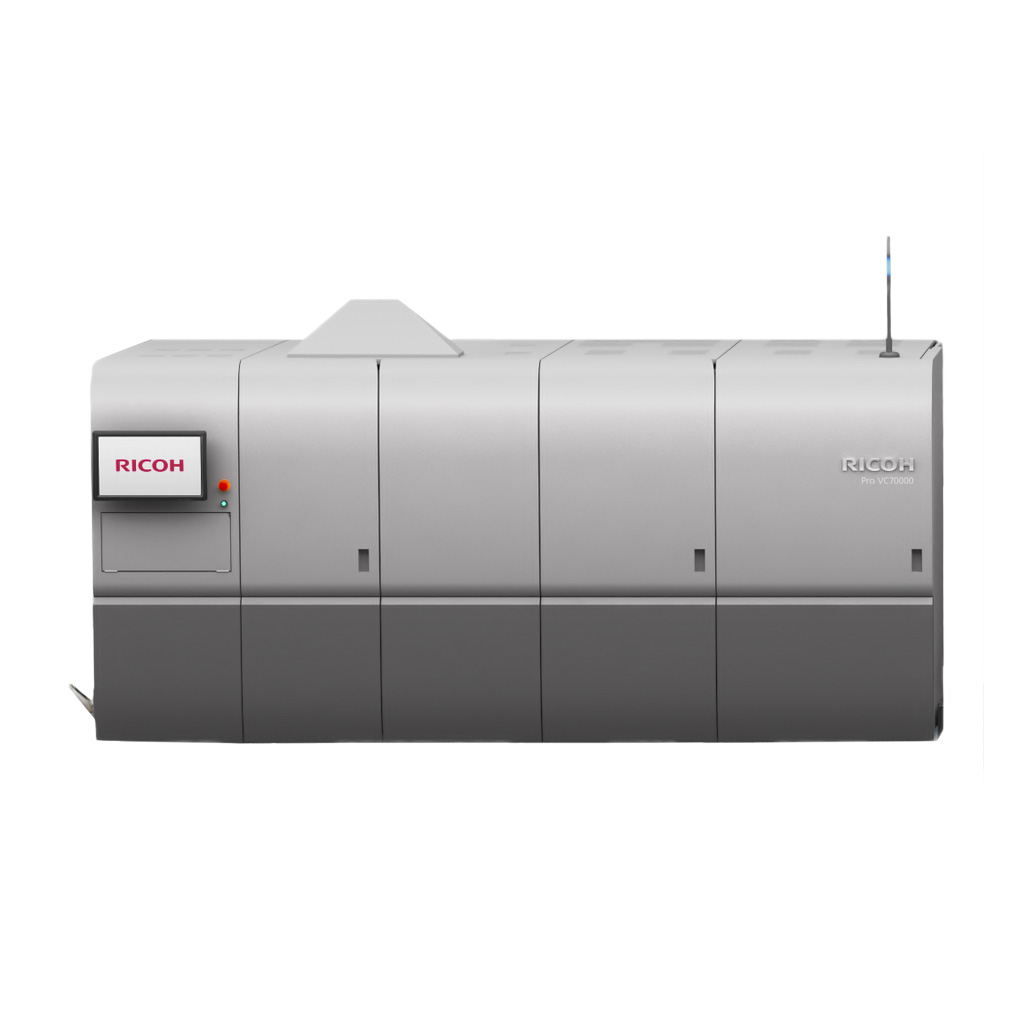

Pro VC70000 Continuous feed production printer

  • Prints up to 150 metres per minute
  • 1,200 x 1,200 dpi
  • Piezo Drop-on-Demand inkjet printheads
  • Up to 40 million A4 impressions per month

Take command of your future with the inkjet solution the industry has been waiting for

Elevating your business today and protecting your investment for years to come, the RICOH Pro VC70000 Continuous Feed Inkjet Printer removes the previous barriers to inkjet print quality, productivity and cost-effectiveness. As a viable alternative to offset printing, it delivers the benefits of digital printing and data-driven communications without compromising on affordable media choices, image integrity and speed of offset. Print on offset coated paper with no priming or pretreatment required thanks to Ricoh's proprietary extended gamut inks and advanced drying technologies. Set your business on a course to achieve market leadership today, and continued growth tomorrow.

  1. Solutions to get your bottom line soaring
    Produce high-value, personalized and data-driven applications — from sales collateral and brochures to direct mail, catalogs, color manuals, custom publications and more — at speeds up to 150 metre per minute
  2. Reliably produce the colors you need
    With a higher pigment-to-water ratio, these inks deliver superior adhesion and allow you to confidently produce more colors consistently, impression after impression and job after job.
  3. Achieve finer detail and reduced ink usage with image-level variable drop sizes
    While other inkjet systems can apply differing drop sizes at a page or file level, the RICOH Pro VC70000 gives you the power to vary them down to the pixel level
  4. Get polished results with advanced drying technologies and built-in anti-cockling
    Innovative new drying technologies set and cure inks inline for outstanding results on offset coated papers and a wider variety of media while allowing for high-speed print production
Download PDF brochure

Specifications

Device configuration
Base unit  (2 units per configuration)
2 print engines per duplex system in I (inline) configuration
A modular system comprises of the Print Unit which houses the CMYK print heads and paper path, Standard Dryer Unit, and Exit Unit.
Functions
Print
Colour
Yes
Printer controller - optional

Ricoh TotalFlow R600A Digital Front End

Note: The Ricoh TotalFlow R600A controller is a mandatory option.

Physical dimensions (WxDxH)—mainframe
4,289.5 x 2,025 x 2,200 mm—base unit (Print Unit/Dryer/Exit Unit)
Weight—mainframe
5,226 kg—base unit (Print Unit/Dryer/Exit Unit)
Paper output configuration - 3rd Party
Pre- and post-processing
Multiple partners provide a variety of unwind, rewind, cut, fold, dynamic perforation, vision systems and inline processing, including a solution for books
Supported media

Offset Coated, Offset Uncoated/EP, Inkjet Treated, Inkjet Coated

Maximum paper size

Length
101.6–1371.6 mm

Width
165–520 mm

Media weight (g/m2)
40–250 at120 m / 64–157 at150 m
Paper path
Tight web
Web width 520.7 mm
Printable area 508 mm (non-printable area 2 mm from paper edges)
Print speed colour

4 colours, 2-bit, 2-up duplex
150 mpm / 2,020 A4/min at 600 x 600 dpi—High Speed Option
120 mpm / 1,616 A4/min at 600 x 600 dpi
100 mpm / 1,344 A4/min at 1,200 x 600 dpi
50 mpm / 672 A4/min at 1,200 x 1,200 dpi

Target volume
Up to 40 million impressions/month
Printing technology
Piezo Drop-on-Demand, 1-pass
10 dual Ricoh printheads per colour
Dynamic variable drop size at 2 bits/drop
Dynamic Print-head Positioning
Ink type
Ricoh high-density, low-water content pigment ink
On-the-fly replacement
2 x 10-litre polystyrene cartridges per colour
Printhead
Ricoh latest generation of Drop-on-Demand Piezo printhead
1-pass—10 x 1,200 dpi printhead modules per colour
Print resolution
Up to 1,200 x 1,200 dpi
Non-printable area
2 mm from paper edge
Sound pressure level
Radiated Sound Pressure (ISO11021, ISO7779)
90 dBA or less—printing
90 dBA or less—dormant
Safety standards
ISO 12100
ISO 13849-1
EN 60204-1
EN 1010-1
EN 1010-2
EN 62311
Electromagnetic Compatibility (EMC) standards
EN 61000-6-2
EN 61000-6-4
Operating environment
Operating temperature
18 –24° C

Operating humidity

40–60%
