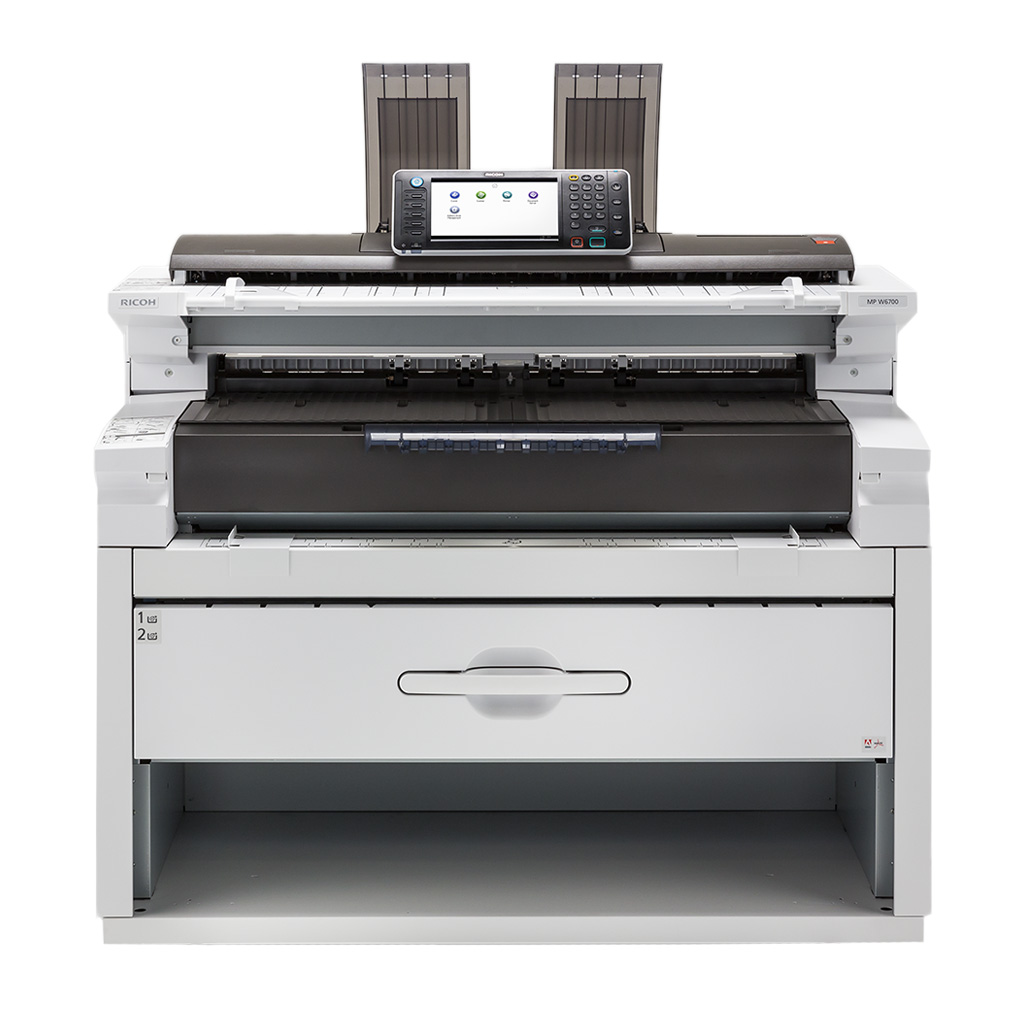

MP W6700SP Black and white wide format printer

  • Print, copy, and scan
  • 6.7 ppm—A1
  • 600 dpi
  • 15 m max print length
Configure your device here
Related Links
Your office's energy conservator

Low power consumption makes sure that you’re reducing your impact onthe environment, as well as your power bills.

Large format printing, on a small office budget

Improve collaboration with a wide format black and white printer than can also copy,scan and send files. The MP W6700SP is designed for contractors,architects and engineers who need a cost-effective solution.

  1. Energy saving
    Quick Start-Up and Sleep Mode reduce energy consumption
  2. Impressive colour scanning
    Full colour scan resolution of up to 1,200 dpi
  3. Remote management
    View, monitor and change system settings from any web browser with Web Image Monitor
  4. Compact size
    Space saving design fits easily into small offices

The quiet office achiever

Keep your office productive, without interruption. Download the Ricoh PrintCopy Tool to print and edit any file quickly to make changes and get approvals more quickly. Access shortcuts to your favourite settings with the customisable touchscreen panel. When last minute changes are made, quickly print updated documents and then scan to email, folder or USB/SD card. Noise levels are kept low to encourage focus, with a compact design to minimise space.

Safe and sound data

Be confident that the information you use and share is kept under wraps. A number of features are here to help with data security which is critical for your organisation’s success. Windows Authentication limits access to authorised users. PDF Encryption protects files and the optional Data Overwrite Security System keeps information in safe hands.

Download PDF brochure

Request a quote and empower your digital workplace with us

Whatever your business needs there's a Ricoh specialist ready to help create the ideal solution to improve your work life. Hit the ‘Request a quote’ button, complete the form with your details and we’ll contact you within 24 hours to discuss your requirements.

Starting from
  • Print, copy, and scan
  • 6.7 ppm—A1
  • 600 dpi
  • 15 m max print length

Specifications

Functions
Copy, print, scan
Colour
No
HDD
320 GB—shared with copy, printer, and scanner applications
Memory - standard
2.5 GB
Operation panel
 9-inch colour LCD operation panel
Physical dimensions (WxDxH)—mainframe
1,250 x 755 x 1,215 mm
Weight—mainframe
267 kg
Standard input capacity (sheets)
2 paper rolls—2-roll feeder
1 sheet—bypass tray
Standard output capacity (sheets)

Inner
99 sheets plain paper—A1 LEF
10 sheets application paper—A1 LEF 1 sheet film

Rear
10 sheets plain paper—A1 portrait, A0 SEF
1 sheet application paper—A1 portrait, A0 SEF 1 sheet film

Paper input configuration - standard
1-sheet bypass tray, 2-roll feeder
Paper output configuration - standard
Original stacker, rear straight through tray
Maximum paper size
914 mm x 15,000 mm
Media weight (g/m2)
52.3–110
Supply yields
1,430 m per 800g toner cartridge

30,000 m (1 kg x 2 bags) developer

Note: 2 bags required for setup.
All yields are measured with the A1/6% Ricoh chart.
Interfaces - standard
Gigabit Ethernet (10Base-T/100Base-Tx/1000Base-T)
USB 2.0
SD card slot
Interfaces - optional
IEEE802.11a/g/n (Wireless LAN) with WPA support
IEEE 1284
SD card for NetWare printing
2 x option slots
USB Host interface for third party IC card reader
Network protocols - standard
TCP/IP (IPv4, IPv6)

Copy speed
6.7 cpm—A1 LEF
First copy time
18 seconds or less—A1 LEF, from roll feeder

Copy resolution
600 dpi
Zoom range
25%–400% in 0.1% steps
Enlargement ratios
141.4%, 200%, 282.8%, 400%
Reduction ratios
25%, 35.4%, 50%, 70.7%
Print speed colour

Print speed black and white
6.7 ppm
Print resolution
600 dpi
Page description languages (PDLs)
PostScript 3, RPCS, HP-GL, HP-GL2 (HP-RTL), TIFF (CALS)
Scan speed
80 mm/second—black and white
26.7 mm/second—colour
Scan methods
CIS
Colour scanning
Supported
Scan resolution

600 dpi, TWAIN—1,200 dpi

Optical resolution
Scan to email/folder—150, 200 (default), 300, 400, 600 dpi
TWAIN—150–1,200 dpi

Scan to email
Requirement
SMTP (mail server) gateway and TCP/IP

Authentication
SMTP, POP before SMTP authentication

Resolution
150, 200 (default), 300, 400, 600 dpi

Supported file types
Multipage TIFF (default), single page TIFF, single- and multipage PDF, single page JPEG, single- and multipage high compression PDF, PDF/A
Scan to folder
Protocols
SMB, FTP, NCP

Security
Client folder login (login name and password), encryption of login name and password during transmission

Resolution
150, 200 (default), 300, 400, 600 dpi

Search client folder
SMB—browsing directly to the designated folders
FTP—by client folder name

Supported file types
Multipage TIFF (default), single page TIFF, single- and multipage PDF, single page JPEG, high compression PDF, PDF/A
TWAIN scanning
Resolution
Black and white
150–1,200 dpi in 1 dpi steps

Colour
150–600 dpi

Scan mode
Standard, photo, OCR, filing
Data Overwrite Security System (DOSS) - Optional
Type H—supports the requirements for Common Criteria certification, conforming to IEEE 2600.1
Encryption
Authentication password encryption
Encrypted communication over Secure Sockets Layer (SSL)
HDD data encryption—optional HDD encryption unit is required
Locked print data encryption
Address book encryption
Encryption of data sent via Scan to email (S/MIME)
PDF encryption (password and transmission)
Authentication
User authentication—Windows (via Kerberos), LDAP, basic, user code
Administrator authentication
802.1x wired authentication
Windows
PostScript 3
Windows Vista
Windows 7
Windows 8
Windows 8.1
Windows 10
Windows Server 2003
Windows Server 2008
Windows Server 2008 R2
Windows Server 2012
Windows Server 2012 R2
Macintosh
Mac OS 10.7 or later—PostScript 3
Standard
@Remote Embedded
Web Image Monitor
Device SDK
Optional
@Remote Office
Device Manager NX
PrintCopyTool
Power source
220–240 V, 50–60 Hz, 8 A (max)
Power consumption
1,840 W—maximum power
1 Wh or less—Energy Saver Mode (Sleep Mode)
Warm-up time
120 seconds or less
Recovery time
30 seconds or less—from Auto Off Timer (Off Mode)
120 seconds or less—from Energy Saver Mode (Sleep Mode)
Environmental standards
Energy Star
EPEAT Gold
R&TTE—2.4 GHz, 5 GHz
C-Tick—Australia, New Zealand
RCM–New Zealand
EN62311 (CE marking)
RoHS
REACH
Directive 2006/66/EC
Directive 94/62/EC
WEEE
India E-waste
RECSI
