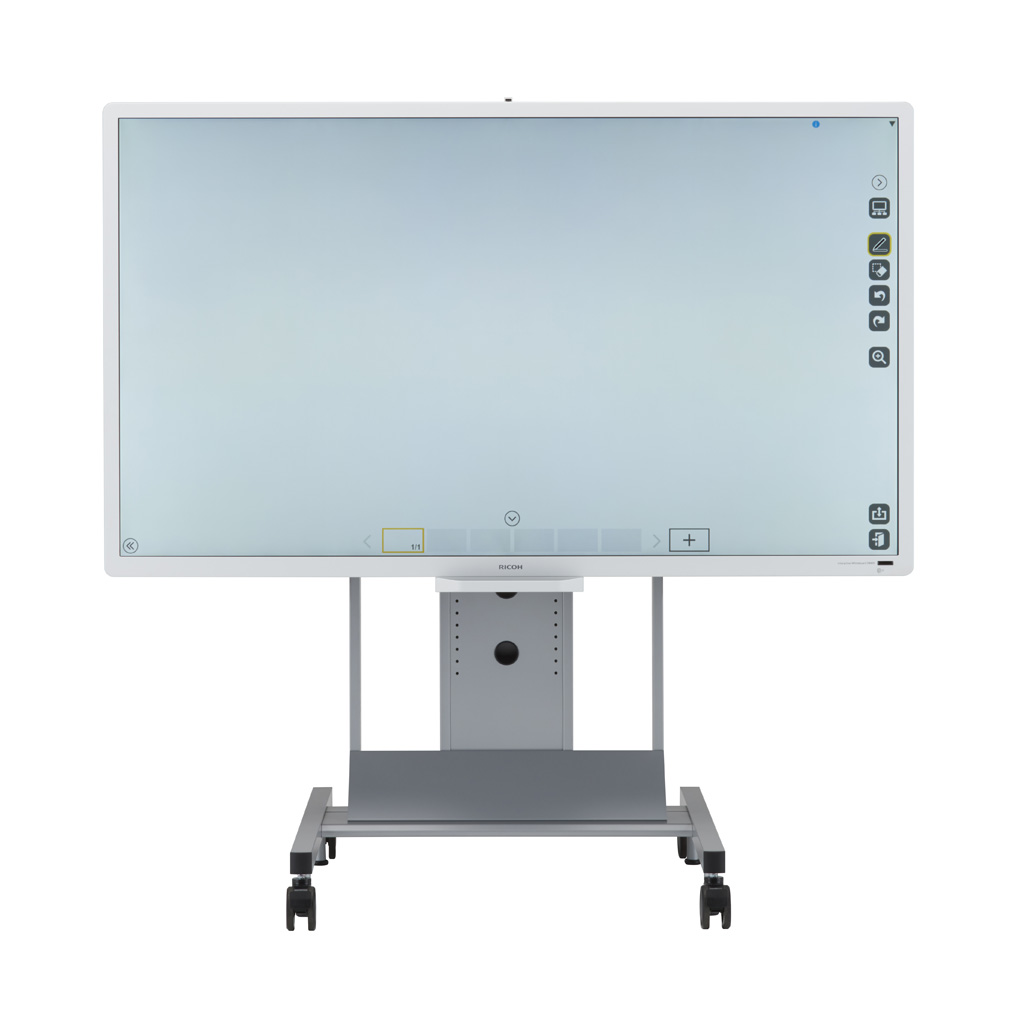

IWB D8400 Interactive whiteboard

  • 84-inch touchscreen
  • 3,840 x 2,160 pixels
  • 308 cd/m2 brightness
  • Optional remote connection

Make a big impact at conferences, classrooms exhibitions

Deliver your message on a massive screen that pops with billions of colour in 4K, impressing audiences and colleagues. Showcase videos and presentations while improving how you collaborate and interact.

Bring visuals to life with this massive, yet portable, interactive whiteboard. Get started easily by connecting to your PC or Mac with easy touchscreen control. Provide interactivity by adding text, shapes and highlight information via your finger or felt-tip pen. Use it as a videoconference system, with picture-in-picture to get feedback from participants in different locations.

  1. Real time collaboration
    Edit and mark documents directly on the whiteboard. Multiple devices can connect for support across locations.
  2. Innovative handwriting recognition
    Write, scribble or draw with the electronic pen, using the whiteboard’s OCR recognition.
  3. No tired eyes
    Blue light mode and anti-glare screen reduces eye strain.
  4. Share results easily
    Whiteboard visuals can be printed or send PDFs by email, to USB or directly to your office folders, on the cloud or network.

Request a quote and empower your digital workplace with us

Whatever your business needs there's a Ricoh specialist ready to help create the ideal solution to improve your work life. Hit the ‘Request a quote’ button, complete the form with your details and we’ll contact you within 24 hours to discuss your requirements.

Starting from
  • 84-inch touchscreen
  • 3,840 x 2,160 pixels
  • 308 cd/m2 brightness
  • Optional remote connection

Specifications

Operation panel
1 x main switch—Master power supply
7 x tact switches—Power, Up, Down, Left, Right, Menu, Enter
What's included

Felt-tip pen
1

Note: There is also a felt-tipped touch pen available as an option, if additional pens are required.

Infrared (IR) receiver
Yes

Remote controller
Yes

Remote controller battery
2 x AAA batteries

Power cord
Yes

RGB cable
Yes

USB cable
Yes—for PC operation

Physical dimensions (WxDxH)—mainframe
1,935 x 131 x 1,134 mm
Weight—mainframe
104 kg or less
Panel type
LCD multi touch-screen display
Panel size
84 inches
Backlight
LED
Effective display area
1,860.48 x 1,046.52 mm
Resolution
3,840 x 2,160 pixels (4K)
Colour reproduction
1.06 billion colours maximum
Colour temperature
11,000 K—cool
6,500 K—warm
9,300 K—neutral
4,200 K—low blue light
Brightness
308 cd/m2
Aspect ratio
16:9
Contrast
1400:1
Display settings

Landscape orientation, Picture Modes—including Low Blue Light Mode, Backlight, Contrast, Brightness, Chroma, Phase, Sharpness, Colour temperature, Treble, Bass, Balance, Volume, Mute, Speaker, Audio Source PAP settings, Aspect, Adjust screen, Touch feature, Language, Power Save Control setting, Touch control settings, Set monitor ID, Advanced information

Pixel pitch
0.744 mm
Response speed
13 ms
Viewing angle HV
Left and right 178 degrees, up and down 178 degrees
Audio

Input
1 x Line 3.5 mm

Output
1 x speaker out

Video
Video input
1 x VGA
1 x HDMI v1.4—HDCP-compliant
2 x DVI-D—HDCP-compliant
1 x DisplayPort—HDCP-compliant
Touch technology
Infrared (IR) touch
Touch points
10—2 when controller is installed
Touch resolution
32,767 x 32,767 pixels
Touch output
USB 2.0 Type B—not available when controller is installed
Touch panel cover glass
4 mm anti-glare
Interfaces - standard

Control
1 x serial RS-232C input
1 x serial RS-232C output
1 x USB 2.0 Type B—for touch control

Open Pluggable Specification (OPS) controller slot
1 slot with detachable cover

Interfaces - optional

With Ricoh IWB controllers
10Base-T/100Base-Tx (Ethernet)
1000Base-T (Gigabit Ethernet)
IEEE 802.11a/b/g/n (Wireless LAN)

Remote connection
Allows real-time sharing of content and drawings.
Remote connection is available in the same network (intranet) and VPN environments.

Windows

Multi-touch sensor
Windows 7—Ultimate, Professional, Home Premium
Windows 8—Windows 8, Pro, Enterprise
Windows 8.1—Windows 8.1, Pro, Enterprise
Windows Embedded Standard 8
Windows Embedded Standard 7

Single-touch sensor
Windows 7—Ultimate, Professional, Home Premium, Home Basic
Windows 8—Windows 8, Pro, Enterprise
Windows 8.1—Windows 8.1, Pro, Enterprise
Windows Embedded Standard 8
Windows Embedded Standard 7

Ricoh IWB controller Type 1 (optional)
Windows Embedded Standard 8

RICOH OS-free Interactive Whiteboard controller Type 1 (optional)
Windows 7—must be installed after setup at customer site

Macintosh
Mac OS X 10.8, 10.9, 10.10—single-touch sensor
Supported languages
Setup guide and safety instructions
English, French, German, Spanish

On-screen display
Japanese, English, French, German, Italian, Spanish, Dutch, Russian, Polish, Swedish, Norwegian, Finnish

Operating instructions
English, French, German, Italian, Spanish, Dutch, Polish, Swedish, Norwegian, Finnish, Brazilian Portuguese

Note: Operating instructions can be downloaded from the Ricoh website.
Power source
100–240 V, 50–60 Hz
Power consumption

Standalone configuration
450 W or less—operating
1W or less—standby

Controller-based configuration
564 W or less—operating
50 W or less—standby

Off Mode
0.5 W or less

Reduction of environmentally sensitive materials
Restriction of Hazardous Substances (RoHS)
Environmental standards
REACH
EU Battery Directive (2006/66/EC)
EU Battery Directive (2005/20/EC)
EU Packaging (94/62/EC)
WEEE
Safety standards
EN60950-1 (CE marking, TUV mark)
IEC60950-1 (CB attestation)
AS/NZS 3112:2000—Australia, New Zealand
Electromagnetic Compatibility (EMC) standards
EN55022
EN61000-3-2 or EN61000-3-12
EN61000-3-3 or EN61000-3-11
EN55024 (CE)
AS/NZS CISPR 22 (C-Tick)
HK EMC—Hong Kong
Wireless LAN standards
For controller option
EN300 330-2 (CE Marking)
EN301 489-1, EN301 489-3 (CE Marking)
EN300 328 (CE Marking)
EN301 893 (CE Marking)
EN301 489-1, EN301 489-17 (CE Marking)
ACMA, C-tick—Australia
MED—New Zealand
iDA—Singapore
SIRIM—Malaysia
OFTA—Hong Kong
NTC—Thailand, Philippines
DGPT, WPC—Indonesia
Operating environment

Temperature
0–32ºC—operating
-10–50ºC—storage

Humidity
10–80%—operating
15–80%—storage
