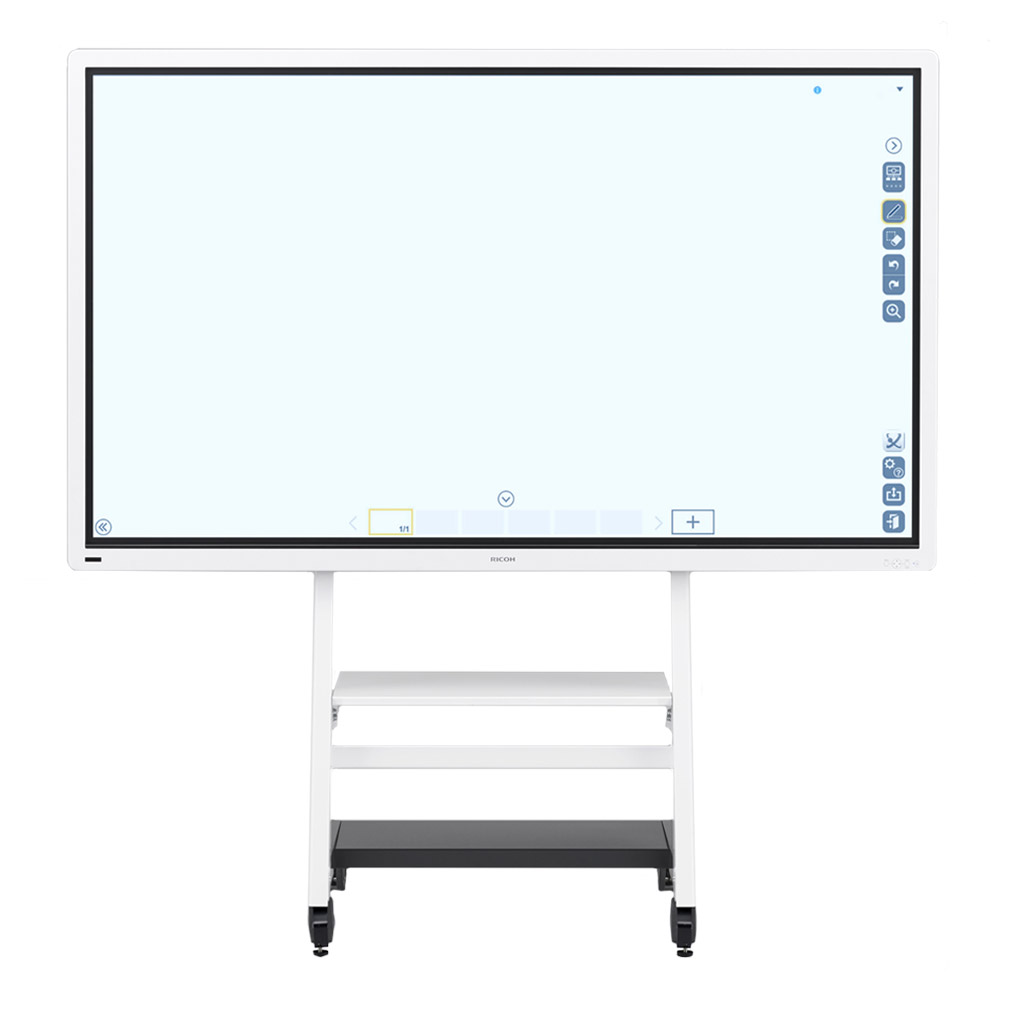

IWB D8600 Interactive whiteboard

  • 86-inch touchscreen
  • 3,840 x 2,160 pixels
  • 410 cd/m2 brightness
  • Second generation touch sensor

Works out of the box

Begin collaborating without IT support. The D8600 is an out-of-the-box solution that doesn't need input from a dedicated computer or proprietary software. Pair it with a Ricoh digital projector to share interactive presentations with larger audiences.

Collaborate to elaborate

Use the D8600 to share information from almost any source without connecting to a PC. Download your favourite business apps to display documents, images and more even files from a corporate network or ERP system. Set up an ad hoc meeting in use Skype® for Business for face-to-face feedback or choose other Windows® 10-compatible videoconferencing software to reach your audience.

  1. Real time collaboration
    Edit and mark documents directly on the whiteboard. Multiple devices can connect for support across locations.
  2. Innovative handwriting recognition
    Write, scribble or draw with the electronic pen, using the whiteboard’s OCR recognition.
  3. No tired eyes
    Blue light mode and anti-glare screen reduces eye strain.
  4. Share results easily
    Whiteboard visuals can be printed or send PDFs by email, to USB or directly to your office folders, on the cloud or network.
Download PDF brochure

Request a quote and empower your digital workplace with us

Whatever your business needs there's a Ricoh specialist ready to help create the ideal solution to improve your work life. Hit the ‘Request a quote’ button, complete the form with your details and we’ll contact you within 24 hours to discuss your requirements.

Starting from
  • 86-inch touchscreen
  • 3,840 x 2,160 pixels
  • 410 cd/m2 brightness
  • Second generation touch sensor

Specifications

Operation panel
1 x main switch—Master power supply
7 x tact switches—Power, Up, Down, Left, Right, Menu, Enter
What's included

Felt-tip pen
1

Note: There is also a felt-tipped touch pen available as an option, if additional pens are required.

Touch pen
1

Note: There is also a touch pen available as an option, if additional pens are required.

Eraser
1

Note: There is also an eraser available as an option, if additional erasers are required.

Infrared (IR) receiver
Yes

Remote controller
Yes

Remote controller battery
2 x AAA batteries

Power cord
Yes

RGB cable
Yes

USB 3.0 cable
Yes—for PC operation

HDMI 2.0 cable
4.6 m

Instructions
User manual
Quick guide
Quick reference for eraser
Safety data sheet for optional stand
Turkish information paper

Physical dimensions (WxDxH)—mainframe
2,009 x 125 x 1,200 mm
Weight—mainframe
122 kg or less
Panel type
LCD multi touch-screen display
Panel size
86 inches
Backlight
LED
Effective display area
1,895.04 x 1,065.96 mm
Resolution
3,840 x 2,160 pixels (4K)
Colour reproduction
1.07 billion colours maximum
Colour temperature

9,300 K—cool
8,000 K—warm
6,500 K—neutral
5,000 K—low blue light
Custom—R/G/B

Brightness
410 cd/m2
Aspect ratio
16:9
Contrast
1200:1
Display settings

Landscape orientation, Picture Modes—including Low Blue Light Mode, Backlight, Contrast, Brightness, Saturation, Sharpness, Colour temperature, Treble, Bass, Balance, Volume, Mute, Speaker, Audio Source PAP Setting, Aspect, Adjust screen, Touch feature, Language, Power Save Control Setting, Touch control settings, Set monitor ID, Advanced information, Reset

Pixel pitch
0.4935 x 0.4935 mm
Response speed
12 ms maximum; 8 ms typical
Viewing angle HV
Left and right 178 degrees, up and down 178 degrees
Audio

Input
1 x Line 3.5 mm

Output
1 x speaker out—for 2 x 12 W external speakers

Video

Video input
1 x VGA
1 x HDMI 2.0—HDCP v2.2-compliant
1 x DVI-D—HDCP v2.2-compliant
1 x DisplayPort—HDCP v2.2-compliant

Video output
1 x DisplayPort

Touch technology
ShadowSense (New Generation Gen2)
Touch points
10 maximum—four points with finger
Touch resolution
80 pt/sec—4,000 spatial resolution
Touch output
USB 3.0 Type B—not available when controller is installed
Touch panel cover glass
4 mm anti-glare (double), 7 pencil hardness
Interfaces - standard

Control
1 x serial RS-232C input
1 x serial RS-232C output
1 x USB 3.0 Type B—for touch control

USB Hub 1
2 x USB 2.0 Type A—side
2 x USB 2.0 Type A—underneath, for connection box

USB Hub 2
4 x USB 3.0 Type A
1 x USB 3.0—4.5 W, for charging

Controller Type 2
Bluetooth v4.0

Open Pluggable Specification (OPS) controller slot
1 slot with detachable cover

Interfaces - optional

With Ricoh IWB controllers
10Base-T/100Base-Tx (Ethernet)
1000Base-T (Gigabit Ethernet)
IEEE 802.11ac/a/b/g/n (Wireless LAN)

Remote connection
Allows real-time sharing of content and drawings.
Remote connection is available in the same network (intranet) and VPN environments.

Windows

Multi-touch sensor
Windows 7—Ultimate, Professional, Home Premium
Windows 8—Windows 8, Pro, Enterprise
Windows 8.1—Windows 8.1, Pro, Enterprise
Windows 10—Home, Pro, IoT, Enterprise
Windows Embedded Standard 8
Windows Embedded Standard 7

Single-touch sensor
Windows 7—Home Basic

Ricoh IWB controller Type 2 (optional)
Windows 10 IoT Enterprise 64-bit

RICOH OS-free Interactive Whiteboard controller Type 2 (optional)
Windows 7—must be installed after setup at customer site

Macintosh
Mac OS X 10.8–10.13—single-touch sensor
Supported languages

Setup guide and safety instructions
English, French, German, Italian, Spanish, Dutch, Polish, Swedish, Norwegian, Finnish, Brazilian Portuguese

Read this first
English, French, German, Italian, Spanish, Dutch, Polish, Swedish, Norwegian, Finnish, Brazilian Portuguese, Arabic

On-screen display
Japanese, English, French, German, Italian, Spanish, Dutch, Russian, Polish, Swedish, Norwegian, Finnish, Brazilian Portuguese, Chinese

On-screen controller display
Japanese, English, French, German, Italian, Spanish, Dutch, Polish, Swedish, Norwegian, Finnish, Brazilian Portuguese, Chinese

Operating instructions
English, French, German, Italian, Spanish, Dutch, Polish, Swedish, Brazilian Portuguese, Chinese

Note: Operating instructions can be downloaded from the Ricoh website.

Connection box user manual
Japanese, English, French, German, Italian, Spanish, Dutch, Polish, Swedish, Brazilian Portuguese

Quick reference guide
Japanese, English

Safety data sheet
English, French, German

Information paper
Turkish

Power source
100–240 V, 50–60 Hz
Power consumption

Standalone configuration
510 W or less—operating
0.5 W or less—standby

Controller-based configuration
564 W or less—operating
50 W or less—standby

Off Mode
0.5 W or less

Reduction of environmentally sensitive materials
Restriction of Hazardous Substances (RoHS)
Environmental standards
REACH
ErP (Lot 6)
EU Battery Directive (2006/66/EC)
EU Battery Directive (2005/20/EC)
EU Packaging (94/62/EC)
WEEE
Taiwan Battery Regulation
Safety standards
EN62368-1 (CE marking, TUV mark, TUV/GS)
EN62368-1 (CB attestation)
EN60950-1 (CE marking, TUV mark)
IEC60950-1 (CB attestation)
CNS14336-1, CNS15663 Section 5 (PRC) Taiwan
GB4943.1 (CCC)
Electromagnetic Compatibility (EMC) standards
EN55024
EN55032
EN61000-3-2 or EN61000-3-3
AS/NZS CISPR 22 (C-Tick)
GB9254, GB17625.1 (CCC)
CNS13438 (PRC)
EN62311 (CE marking)
Wired LAN standards
NCC—Taiwan
Wireless LAN standards
EN300328 (CE Marking)
EN301489-1, EN301489-17 (CE Marking)
ACMA—Australia
iDA—Singapore
NCC—Taiwan
WPC—India
Operating environment

Temperature
0–32ºC—operating
-10–50ºC—storage

Humidity
10–80%—operating
15–80%—storage
